Ointment Manufacturing Plant
GMP Ointment Manufacturing System.
Lab Scale: 5 Kg
Pilot Scale: 10 Kg to 15 Kg
Commercial Scale: 50 Kg to 1000 Kg
- Lab Scale: up to 3 Kg/hr
- Pilot Scale: up to 30 Kg/hr
- Commercial Scale: up to 300 Kg/hr
Ointment Manufacturing Plant
GMP Ointment Manufacturing System.
Lab Scale: 5 Kg
Pilot Scale: 10 Kg to 15 Kg
Commercial Scale: 50 Kg to 1000 Kg

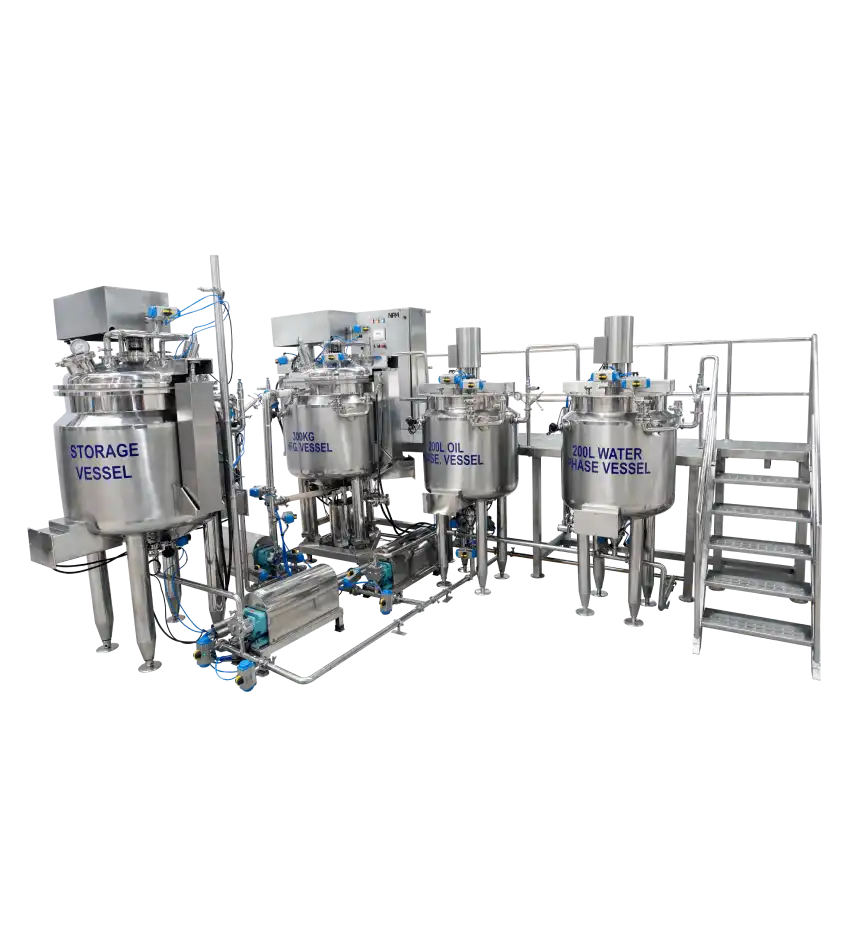

Ointment Manufacturing Plant
Ointment manufacturing plant has wide industrial applications in pharma as well as other allied product processing in same or similar segment. These plants are available in various batch capacities based on its user requirements. Our range is specially designed to take care of hygiene and low maintenance factors. Configuration of the plant can be customized according to the requirement of production process.
Lab Scale: up to 7 kg/batch
Pilot Scale: up to 100 kg/batch
Commercial Scale: up to 500 kg/batch
Salient Features
- In compliance with cGMP guidelines standards.
- Product contact parts of entire plant are made of SS 316
- All internal surfaces are mirror finished
- External surfaces of all vessels are matt finished
- Electro polished piping for entire plant
- Rigid stairs and walkable platform for operational use
- Centralized operating panel
- Hydraulic lid lifting arrangement of the main vessel to facilitate cleaning at the time of product change over
- Specially designed Anchor type stirrer with flexible Teflon scraper for Main Vessel.
- Variable speed provided for stirrer and homogenizer for different speeds for Main Vessel.
- Jacketed vessel for heating/cooling processes for Main Vessel.
- Specially designed conical filter to ensure proper filtration.
- Necessary pressure gauges, safety valves and air vents are provided on all vessels
- Ergonomically designed working platform with safety railing for better & safe operational movements
- All piping joints and other connections are tri clover type to provide quick openability.
- Provision of connecting CIP System
Design
Ergonomically designed compact foot print
Easy to clean and maintain
PLC based operation with color HMI
Dust free processing
Technical Specification
| PARAMETERS | 7 Kg* (Lab) | 50 Kg | 100 Kg | 200 Kg | 300 Kg | 500 Kg |
|---|---|---|---|---|---|---|
| Oil & Water Phase Vessels | ||||||
| Working Volume (L) | 6 | 36 | 75 | 125 | 200 | 250 |
| Gross Volume (L) | 14 | 54 | 95 | 170 | 250 | 350 |
| Manufacturing Vessel | ||||||
| Working Volume (Kg) | 7 | 50 | 100 | 200 | 300 | 500 |
| Gross Volume (Kg) | 13 | 100 | 200 | 330 | 385 | 630 |
| Storage Vessel | ||||||
| Working Volume (Kg) | – | 50 | 100 | 200 | 300 | 500 |
| Gross Volume (Kg) | – | 100 | 170 | 290 | 320 | 550 |
| Approx. Height (mm) | 1300 | 1550 | 1700 | 1950 | 2050 | 2700 |
