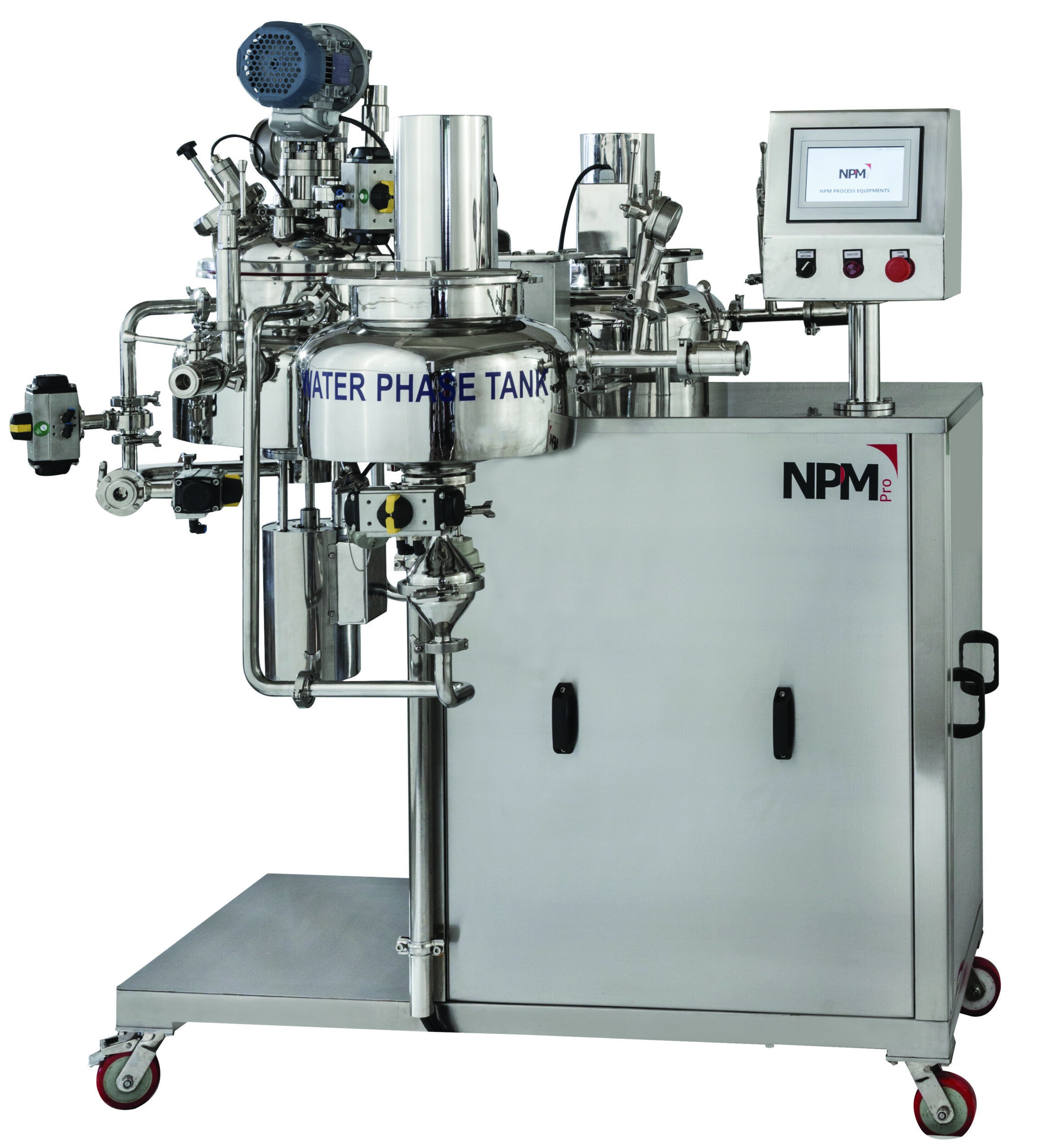

LAB OINTMENT MANUFACTURING PLANT
Salient Features
- In compliance with cGMP guidelines
- Product contact parts of entire plant are made of SS 316
- All internal & external surfaces are mirror finished
- Integration of Oil Phase, Water Phase and Manufacturing Vessels on Portable skid
- Centralized operating panel
- Pneumatic lid lifting arrangement of the main vessel to facilitate cleaning at the time of product change over
- Specially designed Anchor type stirrer for Main Vessel
- Variable speed provided for stirrer and homogenizer for different speeds for Main Vessel
- Jacketed vessel for heating/cooling processes for Main Vessel.
- Vacuum based product transfer from Oil & Water Phase Vessels to Manufacturing Vessel
- Specially designed conical filter to ensure proper filtration.
- Necessary pressure gauges, safety valves and air vents are provided on all vessels
- All piping joints and other connections are tri clover type to provide quick openability.
Design
Ergonomically designed compact foot print
Easy to clean and maintain
PLC based operation with color HMI
Dust free processing
Technical Specification
| Models | OM-5 | OM-10 | OM-15 | |||
|---|---|---|---|---|---|---|
| Vessels | Oil & Water Phase Vessels | Manufacturing Vessel | Oil & Water Phase Vessels | Manufacturing Vessel | Oil & Water Phase Vessels | Manufacturing Vessel |
| Gross Volume (Ltr) | 4 Ltr | 8 Kg | 2.5 Ltr | 14 Kg | 10 Ltr | 20 Kg |
| Working Capacity | 2.5 Ltr | 5 Kg | 5 Ltr | 10 Kg | 7.5 Ltr | 15 Kg |
